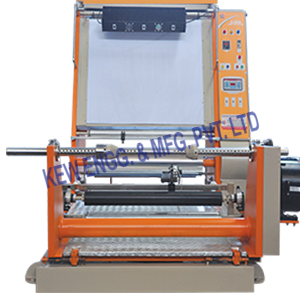

Inspection Doctoring Slitting Machine

We are manufacturing and exporting Inspection Doctoring Slitting Machine, It is used highly for checking and for inspection of bad printed materials on Rotogravure Printing, Flexo Printing Machine, Batch Printing. It is specially designed and built for high accuracy with adjustable slitting assembly. Also, it allows system for Individual drive for both rewind station synchronize with nip and slitting drive.



Inspection Doctoring Slitting Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer.
  3. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  4. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  5. It is great substitute to online coding / batching operation
  6. Convenient height for operation
  7. Compact Design
  8. Variable speed drive
  9. Double drive
  1. Technical Specification of Machine:
    Web width 100 to 1500 MM
    Max. Weight of Unwind 100 to 1000 KG (Different models for different weight)
    Max. Parent Reel Dia. 400 MM
    Max. Rewind Reel Dia. 400 MM
    Rewind Core Dia. 76 MM
    Motor 2 HP AC / DC Motor (3, 5 HP also available on suitable model)
    Maximum Designed Speed 100 to 150 Mtrs / Min
